Deployment Steps

We've made the deployment steps as simple as possible. The deployment will be a docker-compose stack in which all the components will auto-configure themselves.

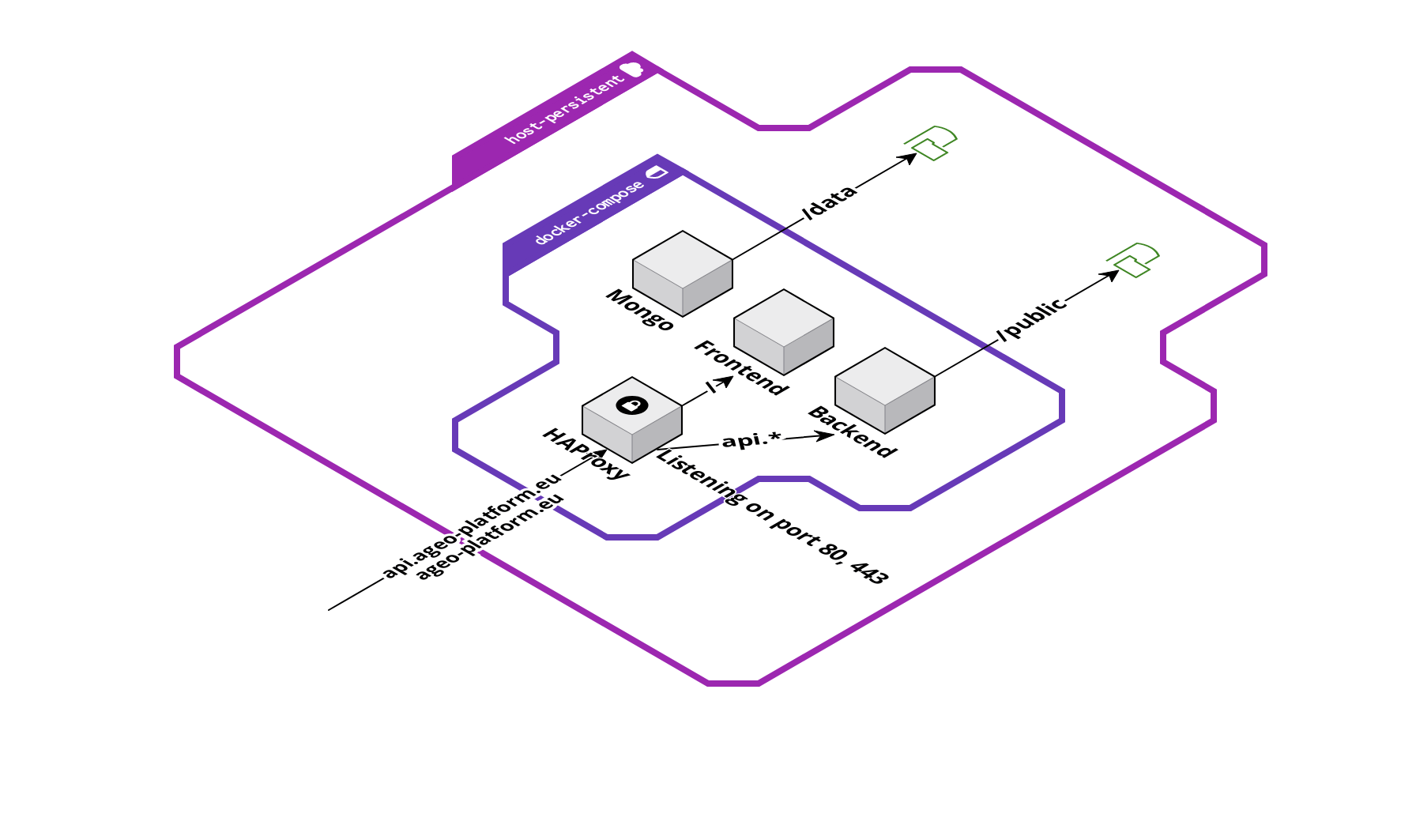

Architecture Diagram

Build Frontend

Build the fontend project and place the entire contents of the dist/ folder in frontend/ directory here.

Build Docker Images

We will not ship source code to target server, instead only built images for security with volume bindings only for persistent storage requirements. Use the provided script build-images.sh

DNS Setup

Allocate a server with a static IP and add the DNS records as follows for the domains zone

Firewall and ports

Make sure that firewall allows open access to ports 80, 443 The steps to do this depend on the firewall in use

sudo iptables -P INPUT ACCEPT
sudo iptables -P OUTPUT ACCEPT
sudo iptables -P FORWARD ACCEPT
sudo iptables -F
sudo apt-get install -y iptables-persistent

Install Docker

sudo apt-get update
curl -fsSL https://get.docker.com -o get-docker.sh
sudo sh ./get-docker.sh
sudo apt install -y docker-compose
sudo systemctl enable docker.service
sudo systemctl enable containerd.service
loginctl enable-linger $USER

Docker Priviledged Ports

Make sure docker can bind to priviledged ports,

sudo su
echo "net.ipv4.ip_unprivileged_port_start=80" >> /etc/sysctl.conf
sysctl --system
exit

Docker compose setup

Make persistent directory for database and user uploads in the host machine alongside docker-compose.yaml file.

mkdir letsencrypt
mkdir mongo
mkdir media

Create a new .env file next to docker-compose.yaml and place the following contents in it.

DOMAIN="staging.ageo.blackcurrantapps.com"

you can change the domain name to whatever you like as defined in the DNS setup

Import containers we've built earlier

sudo docker load --input backend.tar
sudo docker load --input frontend.tar

Start docker compose

sudo docker-compose up -d

Stop docker compose

sudo docker-compose down
